Home > Product > Product Detail

Product Detail

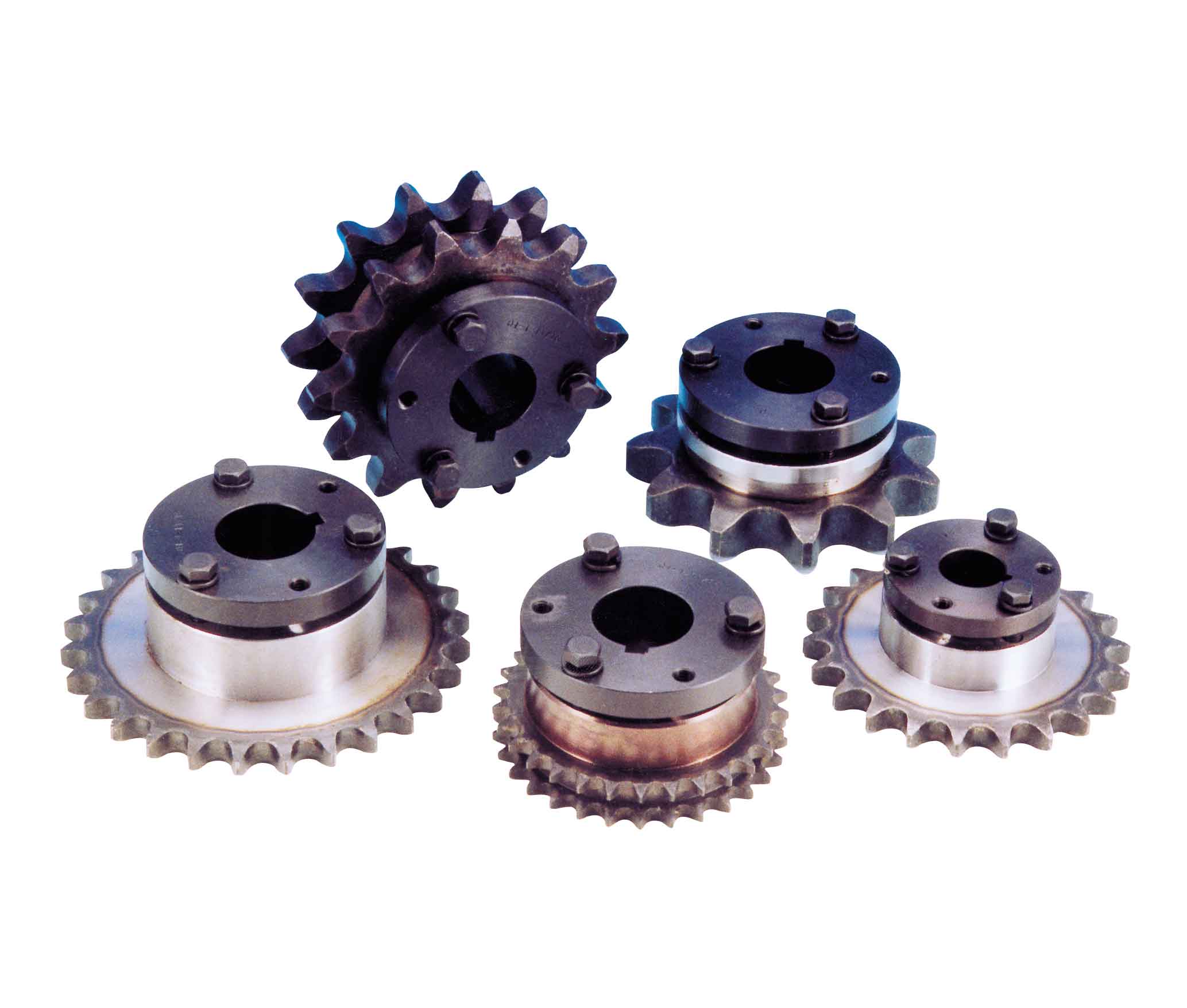

STL Sprockets

ANSI: (35-1/41-1/40-1/40-2/40-3/50-1/50-2/50-3/ 60-1/60-2/60-3/80-1/80-2/80-3/100-1/100-2/ 120-1/140-1/160-1/200-1) Inch size product (Apply to ANSI market) STL Sprockets

Contact Us

Product Details

Parameters Introduction：

A-Plate wheel,B-Sprocket with hub.S-Single is single plate, D-Double is double plates, T-Triple is triple

plates. It also can be showed by number, for example, the 1、2 in “80-1(or B1)、80-2(or B2)” means

single plate, double plates.TB-Taper Bore(BTL、QTL、STL).

European standard:mm,Americian standard: inches.

Product range：

Standards	Series Type	SizeRange
ANSI	35-1 For 3/8"Pitch	STL35G15H-STL35H112
	41-1 For 1/2"Pitch	STL41G12至STL41P112
	40-1 For 3/4"Pitch	STL40G12H至STL40Q112
	40-2 For 1/2"Pitch	STL-D40H15H至STL-D40Q112
	40-3 For 1/2"Pitch	STL-T40P18H至STL-T40Q102
	50-1 For 5/8"Pitch	STL50G11H至STL50Q112
	50-2 For 5/8"Pitch	STL-D50H14H至STL-D50R112
	50-3 For 5/8"Pitch	STL-T50P15H至STL-T50R102
	60-1 For 3/4"Pitch	STL60G10H至STL60R112
	60-2 For 3/4"Pitch	STL-D60P13H至STL-D60R96
	60-3 For 3/4"Pitch	STL-T60P13H至STL-T60S68
	80-1 For 1"Pitch	STL80H10H至STL80S112
	80-2 For 1"Pitch	STL-D80P13H至STL-D80U95
	80-3 For 1"Pitch	STL-T80P13H至STL-T80U95
	100-1 For 1 1/4"Pitch	STL100P11H至STL100R84
	100-2 For 1 1/4"Pitch	STL-D100P11H至STL-D100S80
	120-1 For 1 1/2"Pitch	STL120Q11H至STL120S80
	140-1 For 1 3/4"Pitch	STL140Q11H至STL140S80
	160-1 For 2"Pitch	STL160R11H至STL160U80
	200-1 For 2 1/2"Pitch	STL200R12H至STL200U60

ANSI Catalog:ANSI STL Sprockets.pdf
